Name: Hot Sale Automatic Plastic Tube Filling and Sealing for Gel Ointment Toothpaste Tube Filling Machine
Brand: Leadtop Pharmaceutical Machinery
SKU: Serie LTRG
Price: 32,505.00 USD
Availability: InStock

Hogar > productos > Relleno automático del tubo y máquina de aislamiento >

Hot Sale Automatic Plastic Tube Filling and Sealing for Gel Ointment Toothpaste Tube Filling Machine

automatic plastic tube filling machine

gel ointment tube sealing machine

toothpaste tube filling machine with warranty

Lugar de origen:

PORCELANA

Nombre de la marca:

LTPM China

Certificación:

Número de modelo:

Serie LTRG

Éntrenos en contacto con

Pida una cita

Detalles del producto

Grado automático:

Automático

Voltaje:

380(220) V/50Hz

Material:

Las demás especificaciones técnicas

Capacidad de producción:

25-40 PC /min

Motor:

1.5kw

Altura del tubo:

50-250 mm

Peso:

300 kg

Dimensión (L*W*H):

1500*700*1800m m

PRODUCTOS RELACIONADOS

Vídeo

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine

Consiga el mejor precio

Vídeo

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

Consiga el mejor precio

Vídeo

Cream Packaging Tabletop Aluminum Tube Filling and Sealing Semi Automatic Tube Filling Machine

Consiga el mejor precio

Vídeo

Best Quality CE Approved High Speed New Design Hot Selling Automatic Soft Tube Filling and Sealing Tube Filling Machine

Consiga el mejor precio

Éntrenos en contacto con

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contacto ahora

Descripción del producto

Introduction

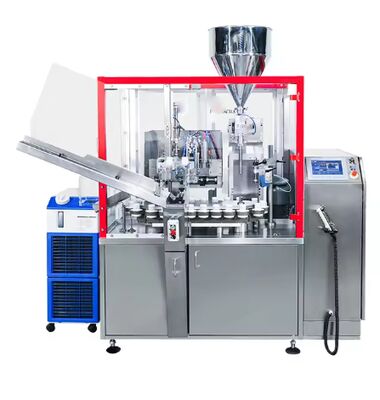

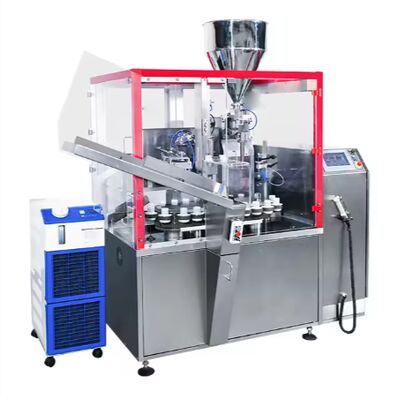

The fully automatic hose filling and sealing machine is suitable for filling and sealing liquids or paste materials, as well as printing production batches; There are two types of machines available: internal heat sealing and folding tail sealing, which are ideal equipment for filling and sealing hoses in industries such as cosmetics, food, ointments, and adhesives; The machine is small, fully functional, and easy to operate, making it the most correct choice for transitioning from semi-automatic to fully automatic.

Features

1. Adopting internal heat sealing at the tail, stable and high-speed, the explosive tail test can bear a weight of 60KG.

2. Starting from the bottom, curve filling with an accuracy of ± 0.1~0.5%.

3. The body is made of SUS304 material; The content contacting material is made of SUS316L material, which complies with FDA standards.

4. It can be used for filling liquid to materials with a viscosity of 100000 CP. s.

5. The filling system can be quickly disassembled and cleaned without tools, making it convenient and fast to switch production.

5. Speed of 60pcs/min, stable operation and low noise.

6. The machine is small, fully functional, easy to operate, and provides 24-hour after-sales service.

Application

Detail Images

9-Station Work Table

You just need to put the tube into the supply box, and the machine will automatically insert, dust, position, fill, heat, seal the tail, cut the tail, and discharge.(tube holder:22pcs)

Tube Type

Tube Type :Circular And Elliptical； Tube Diameter:Φ10~50mm(Optional: Φ55mm) Tube Length:50~250mm Tube Material:PE,Aluminum-plasti,Plastic

Machine Material

The body is made of SUS304 material; The content contacting material is made of SUS316L material, which complies with FDA standards

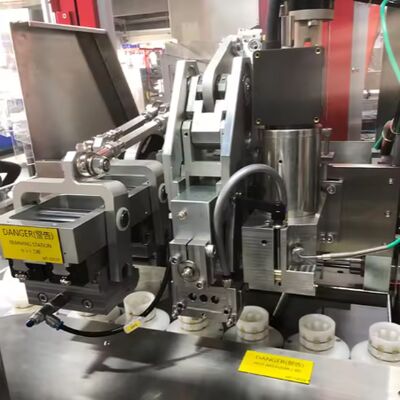

Cursor Positioning

The sensor for cursor positioning adopts SICK brand, with precise positioning; The cursor positioning head is designed for quick disassembly and assembly, making it more convenient for production conversion operations.

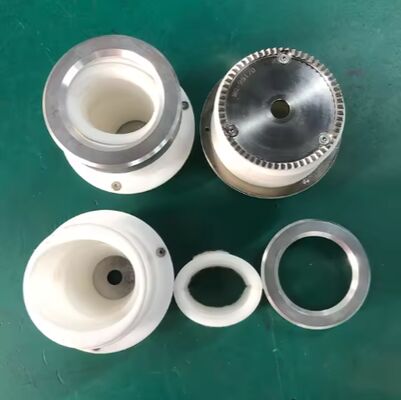

Filling piston and Filling nozzle

Independently developed filling piston and filling nozzle, high-precision processing, more stable filling, filling accuracy: ± 0.1~0.5%; Can choose from forward cutting, reverse cutting, and suction back, with no dripping or drawing during filling.

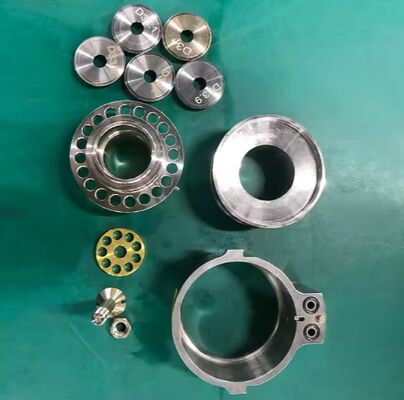

Heating head

One heating head with one cooling ring, equipped with 5 different sizes of end plates. For example, with a diameter of 50 and end pieces: 49.8, 49.9, 50.0, 50.1, 50.2. Even if the thickness of the hose material is different, a set of heating heads can correspond.
