Name: Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling
Brand: Leadtop Pharmaceutical Machinery
SKU: MTB-4
Price: 18000 USD
Availability: InStock

Hogar > productos > Máquinas de proceso farmacéuticas >

Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling

Pneumatic clamping multi lane separator

Efficient multi lane separator system

Precise Multi Lane Separator System

Place of Origin:

China

Nombre de la marca:

LTPM CHINA

Certificación:

Model Number:

MTB-4

Éntrenos en contacto con

Pida una cita

Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling

Detalles del producto

Conveying Materials:

Round bottle/square bottle/square box, etc

Grade Separation Entrance:

Trigger Clamping Action & Total Material Count

Outlet Per Output Strip:

Independent channel counting (counting after channelization)

Fully equipped throughout the process:

Clamping positioning, photoelectric counting, etc

Warranty:

5 years

Voltage:

220V/380V

PRODUCTOS RELACIONADOS

Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling

Consiga el mejor precio

Vídeo

Equipo farmacéutico de la velocidad del pulidor ajustable de la cápsula con 7000 cápsulas/minuto

Consiga el mejor precio

Máquina de encuadernación semi automática

Consiga el mejor precio

Vídeo

El proceso farmacéutico automático trabaja a máquina el embalaje porta hepático del supositorio

Consiga el mejor precio

Éntrenos en contacto con

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contacto ahora

Descripción del producto

Product Description

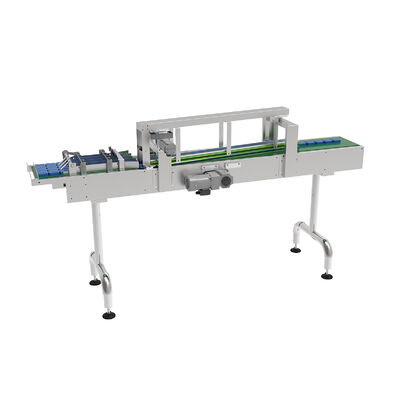

This Multi-Lane Conveyor System utilizes advanced servo-driven technology to dynamically distribute materials from a single input conveyor to multiple output lanes. The system features high-precision photoelectric sensors and a touch-screen programmable control interface, enabling dynamic lane distribution based on preset quantity or time rules. Key features include:
• Servo motor-driven screw module and swing arm mechanism for lane splitting (switching speed ≤0.5s)
• Pneumatic clamping and positioning device to eliminate material inertia deviation
• Anti-interference photoelectric sensors supporting high-speed counting (≥120 pieces/min)
• Modular design for quick adjustment and easy maintenance

1.Clamping and positioning device is located in the front part of the lane switching exit and is pneumatically driven. The material enters into the channeling area instantly clamping and positioning, eliminating inertia offset, ensuring the stability of the material attitude when servo channeling.

2.The counting adopts anti-interference photoelectric sensor, adapting to high-speed counting (≥120 pieces/minute).

Placement	Functionality
Grade Separation Entrance	Trigger Clamping Action & Total Material Count
Outlet Per Output Strip	Independent channel counting (counting after channelization)

3.Touch screen Human Machine Interface (HMI) with programmable counting rules:
Split lanes by quantity (example: 3 pieces left → 5 pieces right → cycle)
Split channels by time (timed channel switching)
Triggered by external signal (linked robot/scanner gun command)
Counts for each channel, servo status, alarm log
Hierarchical password protection parameter modification
